screen_guitest.c File Reference
#include "screen_guitest.h"
#include "button.h"
#include "tft.h"
#include "checkbox.h"
#include "numupdown.h"

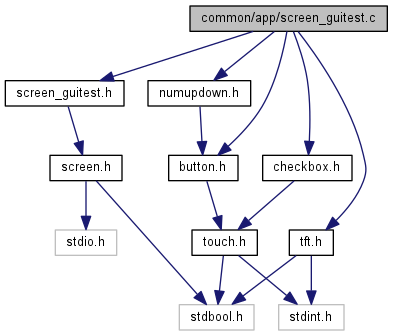

Include dependency graph for screen_guitest.c:

Go to the source code of this file.

Functions

static void checkboxCB (void *checkbox, bool checked)

static void b_back_cb (void *button)

static void n_updown_cb (void *numupdown, int16_t value)

static void touchCB (void *touchArea, TOUCH_ACTION triggeredAction)

static void enter (void *screen)

static void leave (void *screen)

static void update (void *screen)

SCREEN_STRUCT * get_screen_guitest ()


Variables

static BUTTON_STRUCT b_back

static TOUCH_AREA_STRUCT a_area

static CHECKBOX_STRUCT c_cbox

static NUMUPDOWN_STRUCT n_updown

static SCREEN_STRUCT screen


Function Documentation

static void b_back_cb ( void *  button)
static

Definition at line 35 of file screen_guitest.c.

36 {
37  gui_screen_back();
38 }
gui_screen_back
bool gui_screen_back()
Definition: screen.c:85

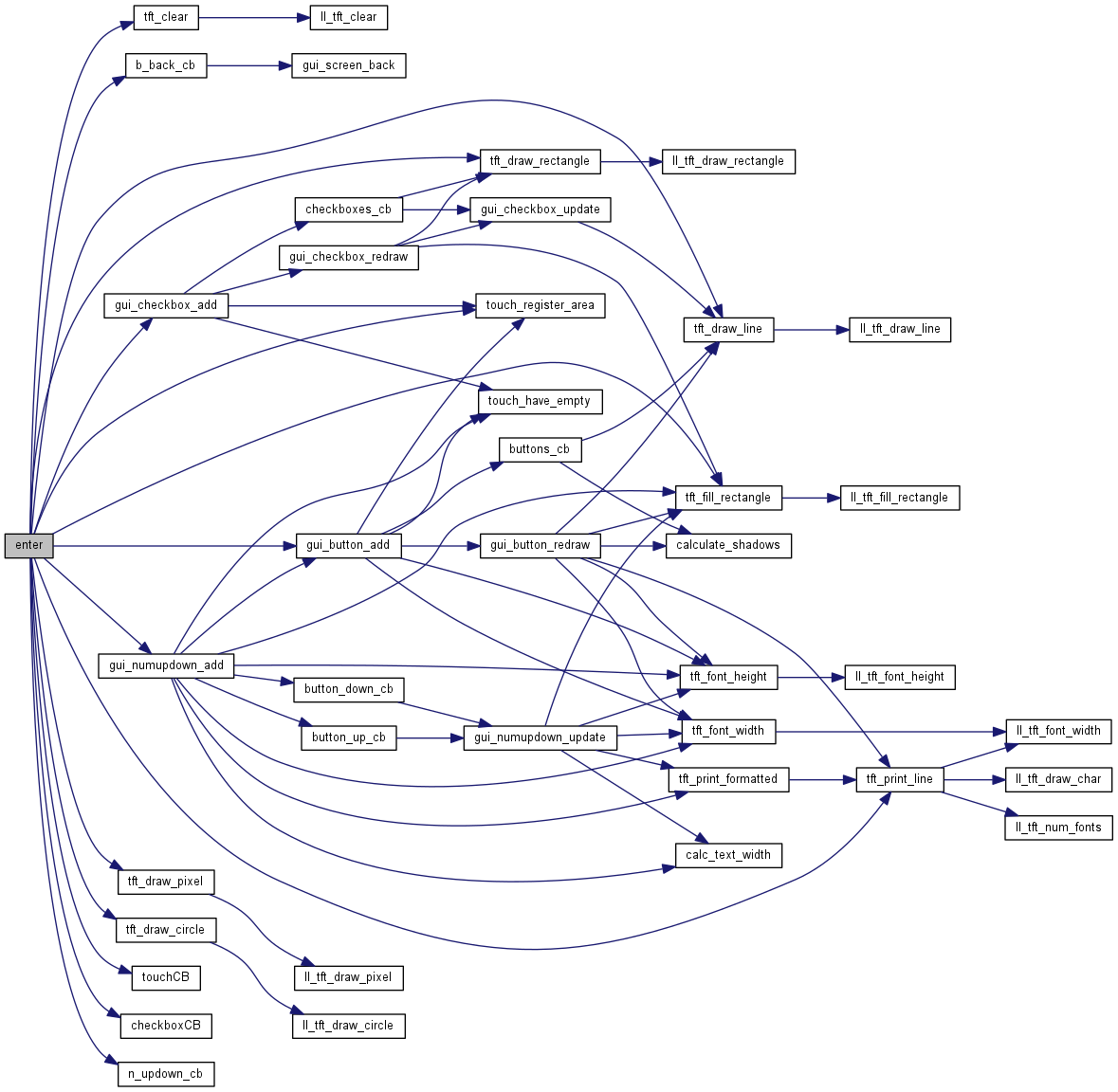

Here is the call graph for this function:

Here is the caller graph for this function:

static void checkboxCB ( void *  checkbox,
bool  checked
)
static

Definition at line 30 of file screen_guitest.c.

31 {
32  printf("Checkbox %s\n", (checked ? "checked" : "unchecked"));
33 }

Here is the caller graph for this function:

static void enter ( void *  screen)
static

Definition at line 75 of file screen_guitest.c.

76 {
77  tft_clear(HEX(0xA6FD9A));
78
79  //Back button
80  b_back.base.x1 = 10; //Start X of Button
81  b_back.base.y1 = 10; //Start Y of Button
82  b_back.base.x2 = AUTO; //b_back.base.x1+160; //Auto Calculate X2 with String Width
83  b_back.base.y2 = AUTO; //Auto Calculate Y2 with String Height
84  b_back.txtcolor = WHITE; //Set foreground color
85  b_back.bgcolor = HEX(0xAE1010); //Set background color (Don't take 255 or 0 on at least one channel, to make shadows possible)
86  b_back.font = 0; //Select Font
87  b_back.text = "Back"; //Set Text (For formatted strings take sprintf)
88  b_back.callback = b_back_cb; //Call b_back_cb as Callback
89  gui_button_add(&b_back); //Register Button (and run the callback from now on)
90
91
92  //tft test
93  tft_draw_pixel(0, 0, BLACK);
94  tft_draw_pixel(319, 239, BLACK);
95  tft_draw_pixel(10, 210, BLUE);
96  tft_draw_pixel(12, 210, BLUE);
97  tft_draw_rectangle(40, 100, 60, 235, BLUE);
98  tft_fill_rectangle(100, 215, 200, 225, GREEN);
99  tft_draw_line(10, 50, 310, 225, RGB(0xFF, 0, 0xFF));
100  tft_draw_circle(10, 10, 100, RED);
101  tft_print_line(30, 130, RED, BLUE, 0, "Hallo");
102
103
104
105  //Area test
106  a_area.hookedActions = PEN_DOWN | PEN_UP | PEN_MOVE | PEN_ENTER | PEN_LEAVE;
107  a_area.x1 = 130;
108  a_area.y1 = 30;
109  a_area.x2 = 200;
110  a_area.y2 = 60;
111  a_area.callback = touchCB;
112  touch_register_area(&a_area);
113
114
115
116  //Checkbox test
117  c_cbox.base.x1 = 220;
118  c_cbox.base.y1 = 45;
119  c_cbox.base.x2 = c_cbox.base.x1 + 16;
120  c_cbox.base.y2 = c_cbox.base.y1 + 16;
121  c_cbox.fgcolor = GREEN;
122  c_cbox.checked = true;
123  c_cbox.callback = checkboxCB;
124  gui_checkbox_add(&c_cbox);
125
126
127  //Num up down test
128  n_updown.x = 200;
129  n_updown.y = 120;
130  n_updown.fgcolor = RED;
131  n_updown.value = -3;
132  n_updown.max = 11;
133  n_updown.min = -5;
134  n_updown.callback = n_updown_cb;
135  gui_numupdown_add(&n_updown);
136
137 }
touch_register_area
bool touch_register_area(TOUCH_AREA_STRUCT *area)
Definition: touch.c:181
BUTTON_STRUCT::text
const char * text
The label of the button.
Definition: button.h:61
PEN_MOVE
Receive an event when the pen moves inside the region (pen is down)
Definition: touch.h:58
BUTTON_STRUCT::txtcolor
uint16_t txtcolor
The 16-bit text color.
Definition: button.h:59
AUTO
#define AUTO
Use this value instead of x2, y2 in the BUTTON_STRUCT to autocalculate the button width/height...
Definition: button.h:65
PEN_DOWN
Receive an event when the pen goes down inside the region.
Definition: touch.h:54
PEN_UP
Receive an event when the pen goes up inside the region.
Definition: touch.h:55
gui_checkbox_add
bool gui_checkbox_add(CHECKBOX_STRUCT *checkbox)
Definition: checkbox.c:70
tft_draw_circle
void tft_draw_circle(uint16_t x, uint16_t y, uint16_t r, uint16_t color)
Definition: tft.c:77
tft_draw_line
void tft_draw_line(uint16_t x1, uint16_t y1, uint16_t x2, uint16_t y2, uint16_t color)
Definition: tft.c:50
NUMUPDOWN_STRUCT::x
uint16_t x
The x-Coordinate of the Top-Left Starting Point.
Definition: numupdown.h:49
TOUCH_AREA_STRUCT::y1
uint16_t y1
Top Left Y-Coordinate of Area.
Definition: touch.h:75
gui_button_add
bool gui_button_add(BUTTON_STRUCT *button)
Definition: button.c:133
tft_print_line
void tft_print_line(uint16_t x, uint16_t y, uint16_t color, uint16_t bgcolor, uint8_t font, const char *text)
Definition: tft.c:98
RGB
#define RGB(r, g, b)
Definition: tft.h:48
TOUCH_AREA_STRUCT::x1
uint16_t x1
Top Left X-Coordinate of Area.
Definition: touch.h:74
CHECKBOX_STRUCT::checked
bool checked
A boolean which indicates whether or not the checkbox is currently checked.
Definition: checkbox.h:53
BUTTON_STRUCT::bgcolor
uint16_t bgcolor
The 16-bit background color of the button.
Definition: button.h:57
touchCB
static void touchCB(void *touchArea, TOUCH_ACTION triggeredAction)
Definition: screen_guitest.c:45
BUTTON_STRUCT::base
TOUCH_AREA_STRUCT base
Basic geometry of the button. You only need to set the x1, y1, x2, y2 members of this struct...
Definition: button.h:56
NUMUPDOWN_STRUCT::callback
NUMUPDOWN_CALLBACK callback
Callback which is executed when the value changes.
Definition: numupdown.h:55
HEX
#define HEX(h)
Definition: tft.h:60
TOUCH_AREA_STRUCT::y2
uint16_t y2
Bottom Right Y-Coordinate of Area.
Definition: touch.h:77
NUMUPDOWN_STRUCT::y
uint16_t y
The y-Coordinate of the Top-Left Starting Point.
Definition: numupdown.h:50
NUMUPDOWN_STRUCT::max
int16_t max
The maximum possible value (inclusive)
Definition: numupdown.h:54
tft_draw_pixel
void tft_draw_pixel(uint16_t x, uint16_t y, uint16_t color)
Definition: tft.c:56
TOUCH_AREA_STRUCT::callback
TOUCH_CALLBACK callback
Callback which is executed when an event occurred in this Area.
Definition: touch.h:78
tft_clear
void tft_clear(uint16_t color)
Definition: tft.c:45
TOUCH_AREA_STRUCT::x2
uint16_t x2
Bottom Right X-Coordinate of Area.
Definition: touch.h:76
PEN_ENTER
Receive an event when the pen enters the region (pen was down before)
Definition: touch.h:56
NUMUPDOWN_STRUCT::min
int16_t min
The minimum possible value (inclusive)
Definition: numupdown.h:53
RED
#define RED
Definition: tft.h:50
WHITE
#define WHITE
Definition: tft.h:53
tft_fill_rectangle
void tft_fill_rectangle(uint16_t x1, uint16_t y1, uint16_t x2, uint16_t y2, uint16_t color)
Definition: tft.c:67
a_area
static TOUCH_AREA_STRUCT a_area
Definition: screen_guitest.c:26
TOUCH_AREA_STRUCT::hookedActions
TOUCH_ACTION hookedActions
Actions to listen to.
Definition: touch.h:73
checkboxCB
static void checkboxCB(void *checkbox, bool checked)
Definition: screen_guitest.c:30
NUMUPDOWN_STRUCT::fgcolor
uint16_t fgcolor
The 16-bit color of the value-text.
Definition: numupdown.h:51
tft_draw_rectangle
void tft_draw_rectangle(uint16_t x1, uint16_t y1, uint16_t x2, uint16_t y2, uint16_t color)
Definition: tft.c:61
BLUE
#define BLUE
Definition: tft.h:52
n_updown_cb
static void n_updown_cb(void *numupdown, int16_t value)
Definition: screen_guitest.c:40
CHECKBOX_STRUCT::base
TOUCH_AREA_STRUCT base
Basic geometry of the Checkbox. You only need to set the x1, y1, x2, y2 members of this struct...
Definition: checkbox.h:51
n_updown
static NUMUPDOWN_STRUCT n_updown
Definition: screen_guitest.c:28
NUMUPDOWN_STRUCT::value
int16_t value
The current/default value.
Definition: numupdown.h:52
CHECKBOX_STRUCT::fgcolor
uint16_t fgcolor
The 16-bit color of the tickmark.
Definition: checkbox.h:52
b_back
static BUTTON_STRUCT b_back
Definition: screen_guitest.c:25
BUTTON_STRUCT::callback
BUTTON_CALLBACK callback
Callback which is executed when the button is pressed.
Definition: button.h:58
CHECKBOX_STRUCT::callback
CHECKBOX_CALLBACK callback
Callback which is executed when the checkbox changes state.
Definition: checkbox.h:54
BUTTON_STRUCT::font
uint8_t font
The number of the font to use.
Definition: button.h:60
GREEN
#define GREEN
Definition: tft.h:51
b_back_cb
static void b_back_cb(void *button)
Definition: screen_guitest.c:35
c_cbox
static CHECKBOX_STRUCT c_cbox
Definition: screen_guitest.c:27
BLACK
#define BLACK
Definition: tft.h:54
PEN_LEAVE
Receive an event when the pen leaves the region (pen was inside region before)
Definition: touch.h:57
gui_numupdown_add
bool gui_numupdown_add(NUMUPDOWN_STRUCT *numupdown)
Definition: numupdown.c:80

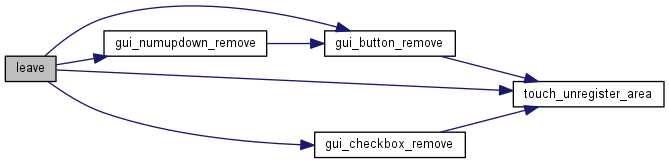

Here is the call graph for this function:

static void leave ( void *  screen)
static

Definition at line 139 of file screen_guitest.c.

140 {
141  gui_button_remove(&b_back);
142  gui_checkbox_remove(&c_cbox);
143  gui_numupdown_remove(&n_updown);
144  touch_unregister_area(&a_area);
145 }
gui_checkbox_remove
void gui_checkbox_remove(CHECKBOX_STRUCT *checkbox)
Definition: checkbox.c:119
touch_unregister_area
void touch_unregister_area(TOUCH_AREA_STRUCT *area)
Definition: touch.c:195
gui_numupdown_remove
void gui_numupdown_remove(NUMUPDOWN_STRUCT *numupdown)
Definition: numupdown.c:136
gui_button_remove
void gui_button_remove(BUTTON_STRUCT *button)
Definition: button.c:184
a_area
static TOUCH_AREA_STRUCT a_area
Definition: screen_guitest.c:26
n_updown
static NUMUPDOWN_STRUCT n_updown
Definition: screen_guitest.c:28
b_back
static BUTTON_STRUCT b_back
Definition: screen_guitest.c:25
c_cbox
static CHECKBOX_STRUCT c_cbox
Definition: screen_guitest.c:27

Here is the call graph for this function:

static void n_updown_cb ( void *  numupdown,
int16_t  value
)
static

Definition at line 40 of file screen_guitest.c.

41 {
42  printf("New NumUpDown Value %d\n", value);
43 }

Here is the caller graph for this function:

static void touchCB ( void *  touchArea,
TOUCH_ACTION  triggeredAction
)
static

Definition at line 45 of file screen_guitest.c.

46 {
47
48  switch (triggeredAction) {
49  case PEN_DOWN:
50  printf("action PEN_DOWN\n");
51  break;
52
53  case PEN_UP:
54  printf("action PEN_UP\n");
55  break;
56
57  case PEN_MOVE:
58  printf("action PEN_MOVE\n");
59  break;
60
61  case PEN_ENTER:
62  printf("action PEN_ENTER\n");
63  break;
64
65  case PEN_LEAVE:
66  printf("action PEN_LEAVE\n");
67  break;
68
69  default:
70  printf("action %s\n", triggeredAction);
71  break;
72  }
73 }
PEN_MOVE
Receive an event when the pen moves inside the region (pen is down)
Definition: touch.h:58
PEN_DOWN
Receive an event when the pen goes down inside the region.
Definition: touch.h:54
PEN_UP
Receive an event when the pen goes up inside the region.
Definition: touch.h:55
PEN_ENTER
Receive an event when the pen enters the region (pen was down before)
Definition: touch.h:56
PEN_LEAVE
Receive an event when the pen leaves the region (pen was inside region before)
Definition: touch.h:57

Here is the caller graph for this function:

static void update ( void *  screen)
static

Definition at line 147 of file screen_guitest.c.

148 {
149  //gui_button_redraw(&b_back); //only needed if button is overdrawn by others
150  //.... for the other elements as well
151 }

Variable Documentation

TOUCH_AREA_STRUCT a_area
static

Definition at line 26 of file screen_guitest.c.

BUTTON_STRUCT b_back
static

Definition at line 25 of file screen_guitest.c.

CHECKBOX_STRUCT c_cbox
static

Definition at line 27 of file screen_guitest.c.

NUMUPDOWN_STRUCT n_updown
static

Definition at line 28 of file screen_guitest.c.

SCREEN_STRUCT screen
static
Initial value:
= {
enter,
leave,
update
}
update
static void update(void *screen)
Definition: screen_guitest.c:147
enter
static void enter(void *screen)
Definition: screen_guitest.c:75
leave
static void leave(void *screen)
Definition: screen_guitest.c:139

Definition at line 154 of file screen_guitest.c.

Generated on Mon Jun 8 2015 11:01:18 for discoverpixy by   doxygen 1.8.9.1
