screen_main.c File Reference

#include "screen_main.h"
#include "screen_guitest.h"
#include "screen_pixytest.h"
#include "screen_filetest.h"
#include "screen_photomode.h"
#include "screen_tracking.h"
#include "button.h"
#include "tft.h"
#include "filesystem.h"

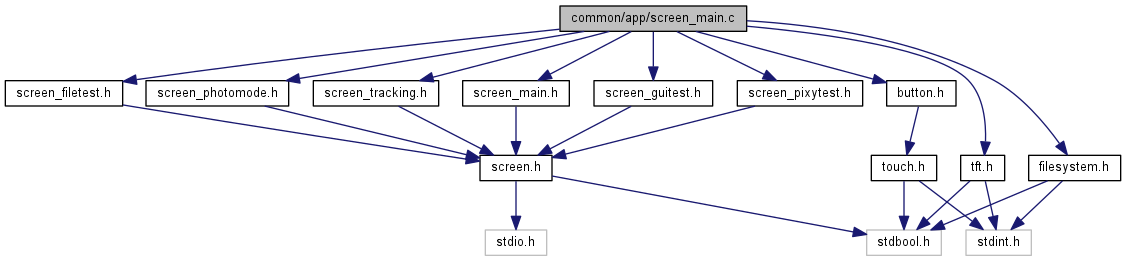

Include dependency graph for screen_main.c:

Go to the source code of this file.

Macros
#define	X_TAB   97
#define	BUTTON_SPACING   7
#define	Y_FIRST   60
#define	Y_SECOND   Y_FIRST+25
#define	Y_THIRD   Y_SECOND+25

Functions
static void	b_our_tracking_cb (void *button)
static void	b_ref_tracking_cb (void *button)
static void	b_photo_mode_cb (void *button)
static void	b_guitest_cb (void *button)
static void	b_filetest_cb (void *button)
static void	b_pixytest_cb (void *button)
static void	enter (void *screen)
static void	leave (void *screen)
static void	update (void *screen)
SCREEN_STRUCT *	get_screen_main ()

Variables
BUTTON_STRUCT	b_guitest
BUTTON_STRUCT	b_pixytest
BUTTON_STRUCT	b_filetest
BUTTON_STRUCT	b_our_tracking
BUTTON_STRUCT	b_ref_tracking
BUTTON_STRUCT	b_photo_mode
static SCREEN_STRUCT	screen

Macro Definition Documentation

#define BUTTON_SPACING   7

#define X_TAB   97

#define Y_FIRST   60

#define Y_SECOND   Y_FIRST+25

#define Y_THIRD   Y_SECOND+25

Function Documentation

static void b_filetest_cb ( void *  button )

static

Definition at line 60 of file screen_main.c.

{
    gui_screen_navigate(get_screen_filetest());
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void b_guitest_cb ( void *  button )

static

Definition at line 55 of file screen_main.c.

{
    gui_screen_navigate(get_screen_guitest());
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void b_our_tracking_cb ( void *  button )

static

Definition at line 38 of file screen_main.c.

{
    tracking_set_mode(OUR_TRACKING);
    gui_screen_navigate(get_screen_tracking());
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void b_photo_mode_cb ( void *  button )

static

Definition at line 50 of file screen_main.c.

{
    gui_screen_navigate(get_screen_photomode());
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void b_pixytest_cb ( void *  button )

static

Definition at line 65 of file screen_main.c.

{
    gui_screen_navigate(get_screen_pixytest());
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void b_ref_tracking_cb ( void *  button )

static

Definition at line 44 of file screen_main.c.

{
    tracking_set_mode(REFERENCE_TRACKING);
    gui_screen_navigate(get_screen_tracking());
}

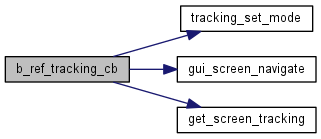

Here is the call graph for this function:

Here is the caller graph for this function:

static void enter ( void *  screen )

static

Definition at line 71 of file screen_main.c.

{
    tft_clear(WHITE);

    //Heading
    tft_print_line(10, 10, BLUE, TRANSPARENT, 1, "Discoverpixy");
    tft_draw_line(0, 40, 319, 40, BLACK);

#define X_TAB           97
#define BUTTON_SPACING  7

    //First line of buttons
#define Y_FIRST         60
    tft_print_line(10, Y_FIRST, BLACK, TRANSPARENT, 0, "Tracking:");

    b_our_tracking.base.x1 = X_TAB; //Start X of Button
    b_our_tracking.base.y1 = Y_FIRST - 3; //Start Y of Button
    b_our_tracking.base.x2 = AUTO; //Auto Calculate X2 with String Width
    b_our_tracking.base.y2 = AUTO; //Auto Calculate Y2 with String Height
    b_our_tracking.txtcolor = WHITE; //Set foreground color
    b_our_tracking.bgcolor = HEX(0xE30535); //Set background color (Don't take 255 or 0 on at least one channel, to make shadows possible)
    b_our_tracking.font = 0; //Select Font
    b_our_tracking.text = "Our Tracking"; //Set Text (For formatted strings take sprintf)
    b_our_tracking.callback = b_our_tracking_cb; //Call b_our_tracking when the button get's pressed
    gui_button_add(&b_our_tracking); //Register Button (and run the callback from now on)


    b_ref_tracking.base.x1 = b_our_tracking.base.x2 + BUTTON_SPACING;
    b_ref_tracking.base.y1 = Y_FIRST - 3;
    b_ref_tracking.base.x2 = AUTO;
    b_ref_tracking.base.y2 = AUTO;
    b_ref_tracking.txtcolor = WHITE;
    b_ref_tracking.bgcolor = HEX(0xFF2151);
    b_ref_tracking.font = 0;
    b_ref_tracking.text = "Ref Tracking";
    b_ref_tracking.callback = b_ref_tracking_cb;
    gui_button_add(&b_ref_tracking);

    //Second line of buttons
#define Y_SECOND Y_FIRST+25
    tft_print_line(10, Y_SECOND, BLACK, TRANSPARENT, 0, "Photo mode:");

    b_photo_mode.base.x1 = X_TAB;
    b_photo_mode.base.y1 = Y_SECOND - 3;
    b_photo_mode.base.x2 = AUTO;
    b_photo_mode.base.y2 = AUTO;
    b_photo_mode.txtcolor = WHITE;
    b_photo_mode.bgcolor = HEX(0x21B1FF);
    b_photo_mode.font = 0;
    b_photo_mode.text = "Photo Mode";
    b_photo_mode.callback = b_photo_mode_cb;
    gui_button_add(&b_photo_mode);


    //Third line of buttons
#define Y_THIRD Y_SECOND+25
    tft_print_line(10, Y_THIRD, BLACK, TRANSPARENT, 0, "Tests:");

    b_guitest.base.x1 = X_TAB;
    b_guitest.base.y1 = Y_THIRD - 3;
    b_guitest.base.x2 = AUTO;
    b_guitest.base.y2 = AUTO;
    b_guitest.txtcolor = BLACK;
    b_guitest.bgcolor = HEX(0x00FA21);
    b_guitest.font = 0;
    b_guitest.text = "Gui & Tft";
    b_guitest.callback = b_guitest_cb;
    gui_button_add(&b_guitest);


    b_pixytest.base.x1 = b_guitest.base.x2 + BUTTON_SPACING;
    b_pixytest.base.y1 = Y_THIRD - 3;
    b_pixytest.base.x2 = AUTO;
    b_pixytest.base.y2 = AUTO;
    b_pixytest.txtcolor = BLACK;
    b_pixytest.bgcolor = HEX(0x00FA96);
    b_pixytest.font = 0;
    b_pixytest.text = "Pixy";
    b_pixytest.callback = b_pixytest_cb;
    gui_button_add(&b_pixytest);


    b_filetest.base.x1 = b_pixytest.base.x2 + BUTTON_SPACING;
    b_filetest.base.y1 = Y_THIRD - 3;
    b_filetest.base.x2 = AUTO;
    b_filetest.base.y2 = AUTO;
    b_filetest.txtcolor = BLACK;
    b_filetest.bgcolor = HEX(0x00FAC4);
    b_filetest.font = 0;
    b_filetest.text = "File";
    b_filetest.callback = b_filetest_cb;
    gui_button_add(&b_filetest);


    //Bottom line
    tft_draw_line(0, 145, 319, 145, BLACK);
    tft_print_line(10, 150, BLUE, TRANSPARENT, 0, "Powered by");
    tft_draw_bitmap_file_unscaled(10, 165, "pixy_small.bmp");
    tft_draw_bitmap_file_unscaled(165, 165, "stm_small.bmp");

}

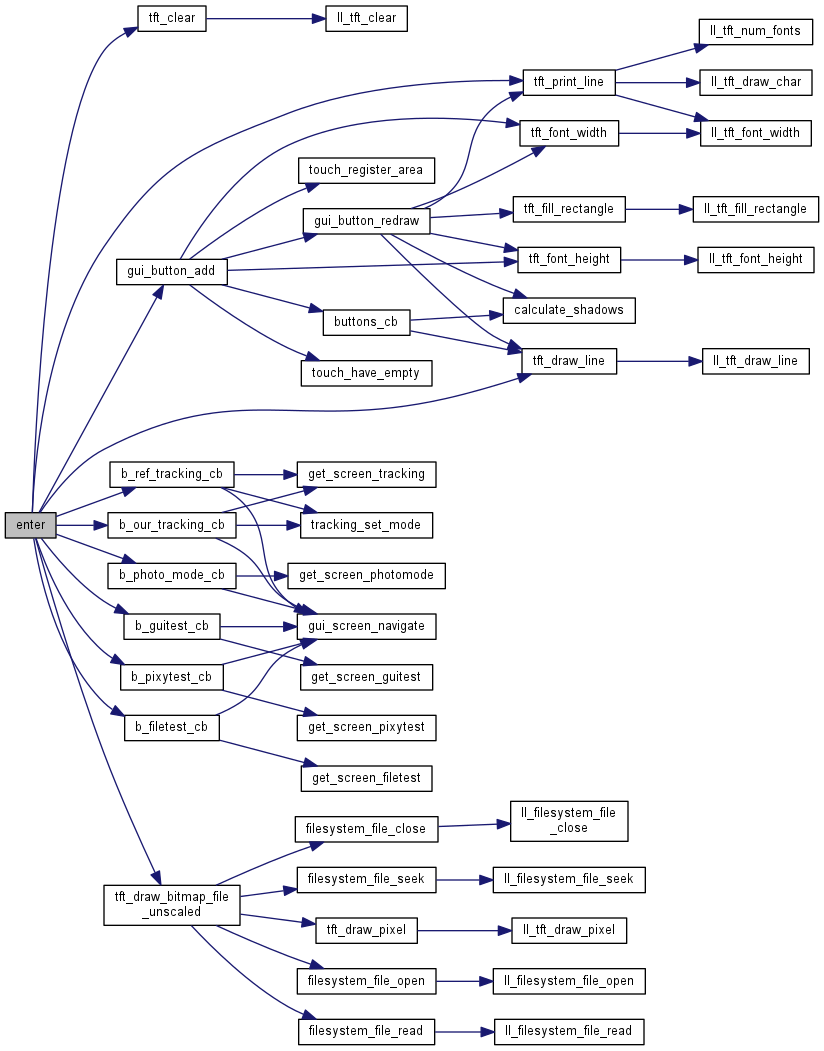

Here is the call graph for this function:

static void leave ( void *  screen )

static

Definition at line 173 of file screen_main.c.

{
    gui_button_remove(&b_our_tracking);
    gui_button_remove(&b_ref_tracking);
    gui_button_remove(&b_photo_mode);
    gui_button_remove(&b_guitest);
    gui_button_remove(&b_pixytest);
    gui_button_remove(&b_filetest);
}

Here is the call graph for this function:

static void update ( void *  screen )

static

Definition at line 183 of file screen_main.c.

{
    //gui_button_redraw(&b_guitest); //only needed if button is overdrawn by others
}

Variable Documentation

BUTTON_STRUCT b_filetest

Definition at line 31 of file screen_main.c.

BUTTON_STRUCT b_guitest

Definition at line 29 of file screen_main.c.

BUTTON_STRUCT b_our_tracking

Definition at line 33 of file screen_main.c.

BUTTON_STRUCT b_photo_mode

Definition at line 35 of file screen_main.c.

BUTTON_STRUCT b_pixytest

Definition at line 30 of file screen_main.c.

BUTTON_STRUCT b_ref_tracking

Definition at line 34 of file screen_main.c.

SCREEN_STRUCT screen

static

Initial value:

= {
    enter,
    leave,
    update
}

Definition at line 189 of file screen_main.c.
